We KAIJIELI Group firmly believe that "Sincerity Creates Value". We always adhere to the policy of high standard, high quality and high efficiency and devote ourselves to the research and sales all over the world.

Location:ELECTRIC MOTOR


INTRODUCTION :


YEJ series three phase squirrel-cage induction motors are totally enclosed fan-cooled and equipped with D. C. round brake. It has advantages: rapid braking,simple structure, high reliability and wide application. Furthermore, the brake can be controlled by manual releasing. The motors are widely used on mechanical equipment and driving machines where rapid stop and accurate braking are demanded.

TECHNICAL DATA

Housing metrial:

Cast Iron

Output Range:

 0.75KW-45KW

Pole:

2/4/6/8

Terminal Box:

Top Mounted

Protection Class:

IP44/IP54/IP55

Insulation Class:

B/F/H

Bearing:

SKF/NSK/Chinese

Frequency:

50/60HZ


Operating Conditions

Ambient temperature:

-15º C~40º C

Altitude:

not exceed 1000m

Rated voltage:

380V(at buyer's option)

Rated frequency:

50HZ 60HZ(at buyer's option)

Cooling method:

IC 411

Duty:

S1




 Company Overview:



 Certifications:


 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.

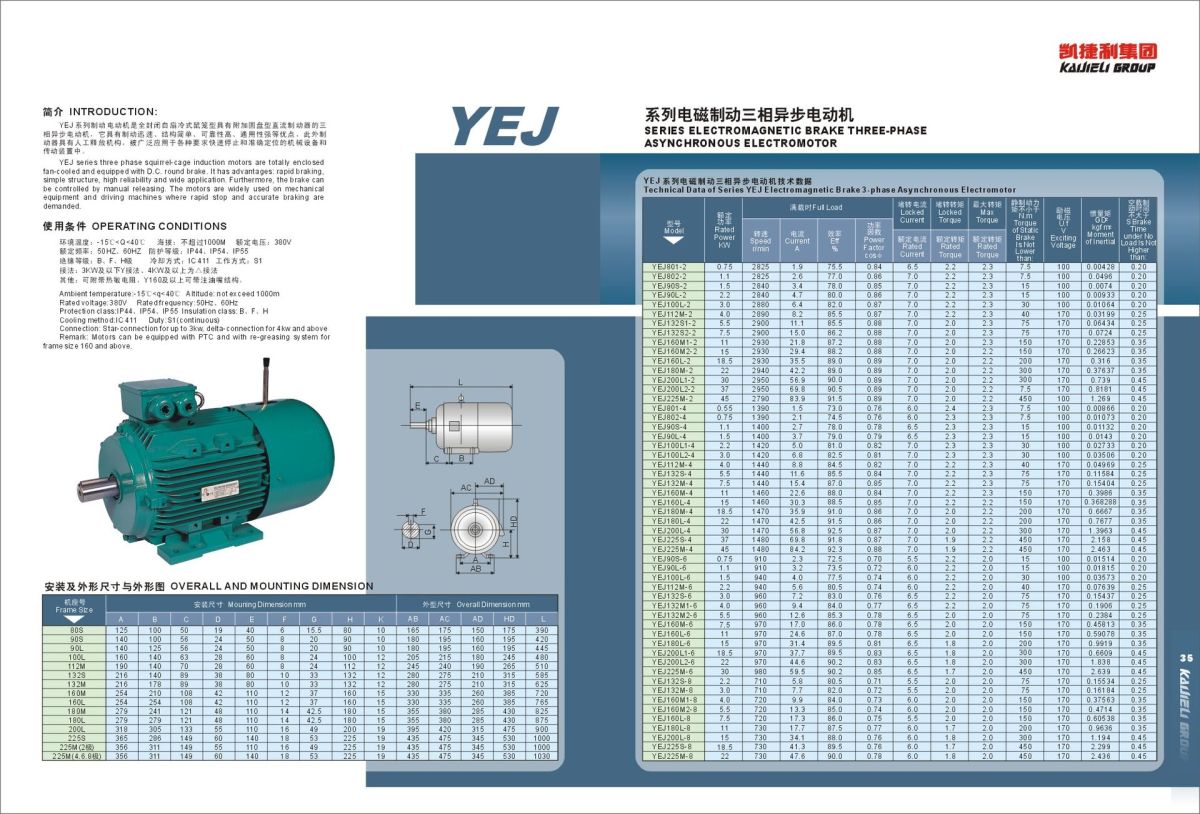

YEJ SERIES - ELECTROMAGNETIC BRAKE MOTOR
INTRODUCTION:
YEJ series three phase squirrel-cage induction motors are totally enclosed fan-cooled and equipped with D. C. round brake. It has advantages: rapid braking,simple structure, high reliability and wide application. Furthermore, the brake can be controlled by manual releasing. The motors are widely used on mechanical equipment and driving machines where rapid stop and accurate braking are demanded.

REQUEST INFORMATION

PRODUCT DETAILS
