Location:ALTERNATORS


INTRODUCTION :


 FHW Series of Permanent magnet DC Arc-Welding Generator has such characteristics as small size,light weight, convenient in operation, high in efficiency and reliable in quality, etc. It adopts 12ps diesel or gasoline engine or 7.5KW electric motor as its dynamic force. And it can also be assembled on tricycle. quadricycle or other motor vehicles to make up movable or stationary welding and generating double duty equipment. It has been widely used as power supply for lighting and such AC-DC electrical appliances as electric drill and electric hammer in oil field, mineral exploitation, highway and bridgeengineering, pipe work, cities and towns rural area forest region, pastoral area, fishing port, industries workshops ,frontier sentry, small ship, house hold and public places, etc.

The welding section of this equipment adopts the structure of cathode to ground and bipole output. The welding and generation can be used separately or simultaneously. The total load can reach the specified capacity in the instruction manual. Furthermore, since it adopts the permanent-magnet structure, the traditional excitation unit has been abolished. During welding, it has such characteristic as wide adjust in grange of welding current, easy generating of arc, and stable flame holding, etc. The welding performance has met the national technical standard for AX series arc-welding machine.

TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:1.5KW-1.8KW
Terminal Box:Top Mounted
Protection Class:IP21
Insulation Class:B
Bearing:Chinese
Frequency:50/60HZ
Pulley Available:4'', 5'',  6'', 7'', 8'', 11'' or any other size as per   requirement
Efficiency Standard:IEC34-1


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:230V 400V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer'   s option)
Cooling method:IC 411
Duty:S1

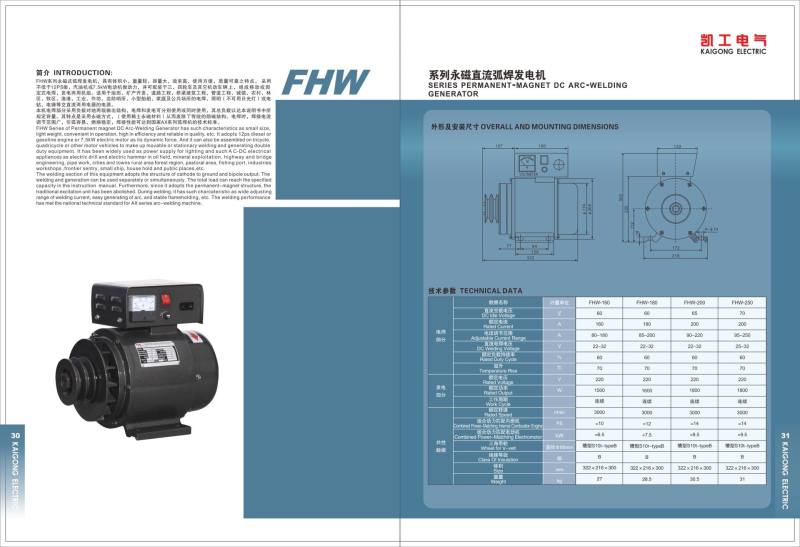

FHW SERIES PERMANENT-MAGNET DC ARC-WELDING GENERATOR


 Company Overview:


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200


 Certifications:


20200817162347346.jpg@!w1200

 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


FHW SERIES PERMANENT-MAGNET DC ARC-WELDING GENERATOR
INTRODUCTION:
FHW Series of Permanent magnet DC Arc-Welding Generator has such characteristics as small size,light weight, convenient in operation, high in efficiency and reliable in quality, etc. It adopts 12ps diesel or gasoline engine or 7.5KW electric motor as its dynamic force. And it can also be assembled on tricycle. quadricycle or other motor vehicles to make up movable or stationary welding and generating double duty equipment. It has been widely used as power supply for lighting and such A C-DC electrical appliances as electric drill and electric hammer in oil field, mineral exploitation, highway and bridgeengineering, pipe work, cities and towns rural area forest region, pastoral area, fishing port, industries workshops ,frontier sentry, small ship, house hold and public places, etc.
The welding section of this equipment adopts the structure of cathode to ground and bipole output. The welding and generation can be used separately or simultaneously. The total load can reach the specified capacity in the instruction manual. Furthermore, since it adopts the permanent-magnet structure, the traditional excitation unit has been abolished. During welding, it has such characteristic as wide adjust in grange of welding current, easy generating of arc, and stable flame holding, etc. The welding performance has met the national technical standard for AX series arc-welding machine.
