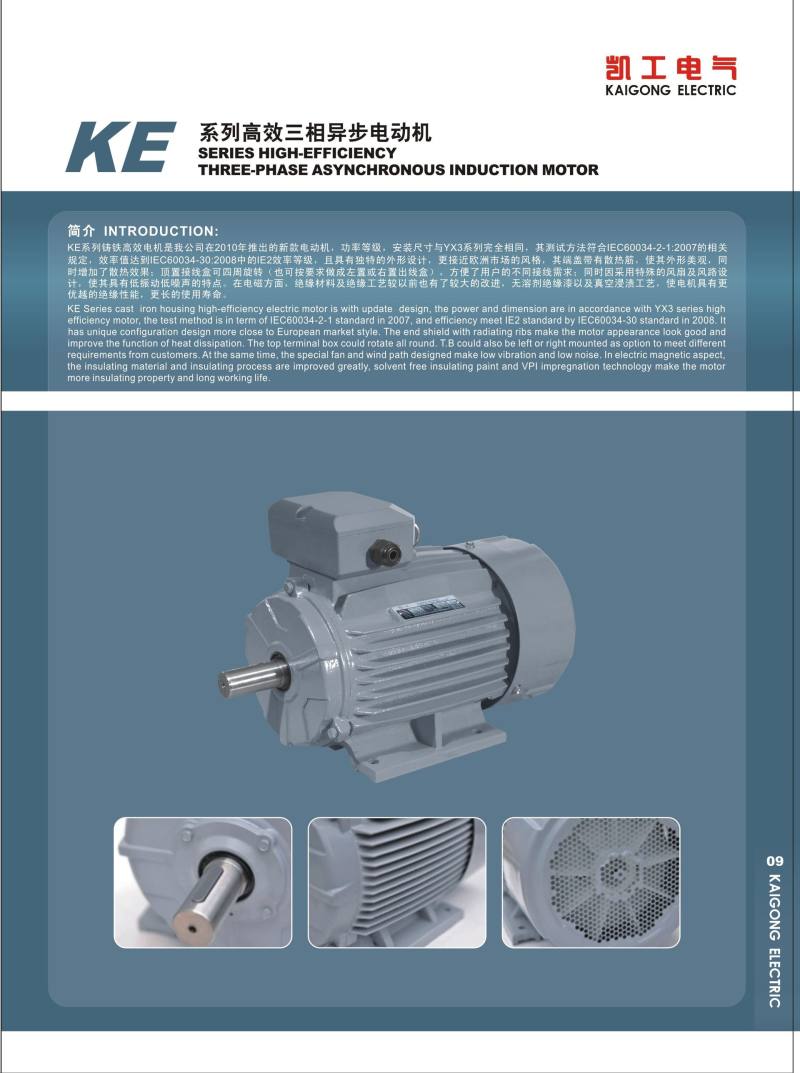

 INTRODUCTION :


KE Series cast iron housing high-efficiency electric motor is with update design, the power and dimension are in accordance with YX3 series high efficiency motor, the test method is in term of IEC60034-2-1 standard in 2007, and efficiency meet IE2 standard by IEC60034-30 standard in 2008. It has unique configuration design more close to European market style. The end shield with radiating ribs make the motor appearance look good and improve the function of heat dissipation. The top terminal box could rotate all round. T.B could also be left or right mounted as option to meet different requirements from customers. At the same time, the special fan and wind path designed make low vibration and low noise. In electric magnetic aspect, the insulating material and insulating process are improved greatly, solvent free insulating paint and VPI impregnation technology make the motor more insulating property and long working life.


FEATURES OF KE3 SERIES:


1) Available in 2,4,6 pole variants with efficiency grade 1 according to GB60034-30 and efficiency class IE2 according to IEC60034-30

2) Optimized compact style construction

3) Standard mounting construction according to IEC60034-7; IMB3, IMB5, IMB35, IMB14, IMB34, IMV1, IMV3 and etc

4) AII motors are designed to IP55  degree of protection(IEC60034-5)

5) Winding protections with PTC, PT100 and KTY84-130 as option

6) Insulation system is designed for temperature class 155°C(F). At rated output with line-fed operation, the motors can be used in temperature class 130°C(B)


TECHNICAL   DATA


Housing metrial:

Cast Iron

Output range:

0.55KW~315KW

Pole:

2/4/6/8

Terminal Box:

Top/Side Mounted

Protection Class:

IP55

Insulation Class:

F

Bearing:

SKF/NSK/Chinese

Frequency:

50/60HZ

Efficiency Standard:

IEC60034-30 IE2

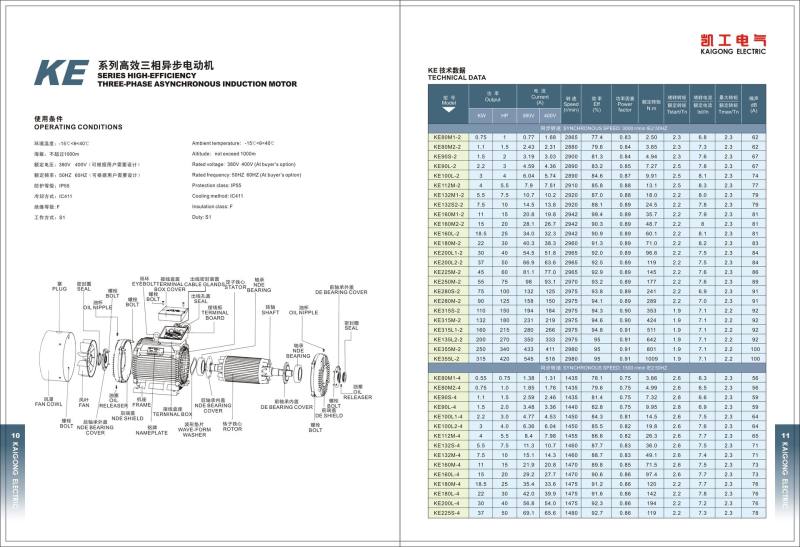

Operating Conditions

Ambient temperature:

-15º C~40º C

Altitude:

not exceed 1000m

Rated voltage:

380V(at buyer' s option)

Rated frequency:

50HZ 60HZ(at buyer' s option)

Cooling method:

IC 411

Duty:

S1



KE SERIES HIGH EFFICIENCY MOTOR

KE SERIES HIGH EFFICIENCY MOTOR

KE SERIES HIGH EFFICIENCY MOTOR

KE SERIES HIGH EFFICIENCY MOTOR


Company Overview:


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200


Certifications :


20200817162347346.jpg@!w1200


Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


KE SERIES HIGH EFFICIENCY MOTOR
INTRODUCTION:
KE Series cast iron housing high-efficiency electric motor is with update design, the power and dimension are in accordance with YX3 series high efficiency motor, the test method is in term of IEC60034-2-1 standard in 2007, and efficiency meet IE2 standard by IEC60034-30 standard in 2008. It has unique configuration design more close to European market style. The end shield with radiating ribs make the motor appearance look good and improve the function of heat dissipation. The top terminal box could rotate all round. T.B could also be left or right mounted as option to meet different requirements from customers. At the same time, the special fan and wind path designed make low vibration and low noise. In electric magnetic aspect, the insulating material and insulating process are improved greatly, solvent free insulating paint and VPI impregnation technology make the motor more insulating property and long working life.
