We KAIJIELI Group firmly believe that "Sincerity Creates Value". We always adhere to the policy of high standard, high quality and high efficiency and devote ourselves to the research and sales all over the world.

Location:ELECTRIC MOTOR


 INTRODUCTION :


AИP electric motor is the new product that we design for Eastern Europe market. The main feature of AИP motor (GOST standard) is 1000V and below 50Hz or 60Hz, S1 duty, 2P, 4P ,8P and 8 Pof frame size H71 to H355. Power range from 0.75KW to 375KW. ANP motor adopts the newest design and high quality material. They have good features like low noise, slight vibration, reliable performance, good apperance etc, These motor can be widely used in power transmisission industry such as pumps, ventilators, machine tools, reducers, packing machines mining equipment and construction equipment and many other drive machinery industries.

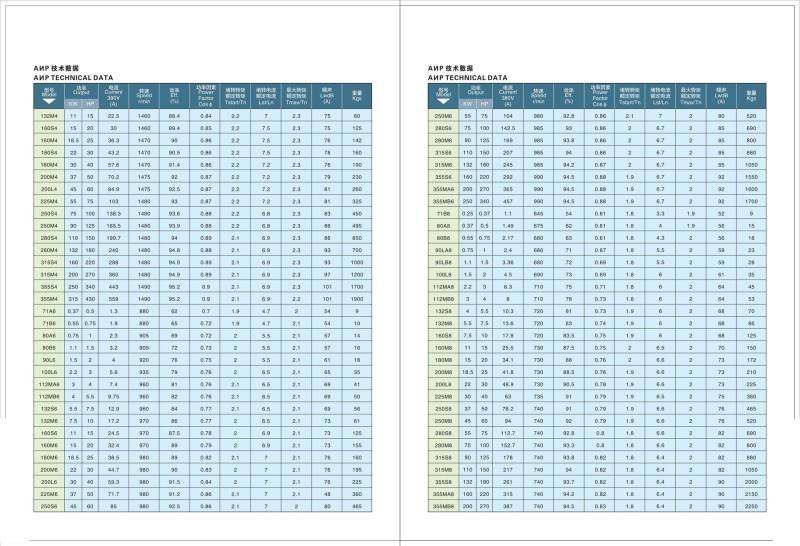

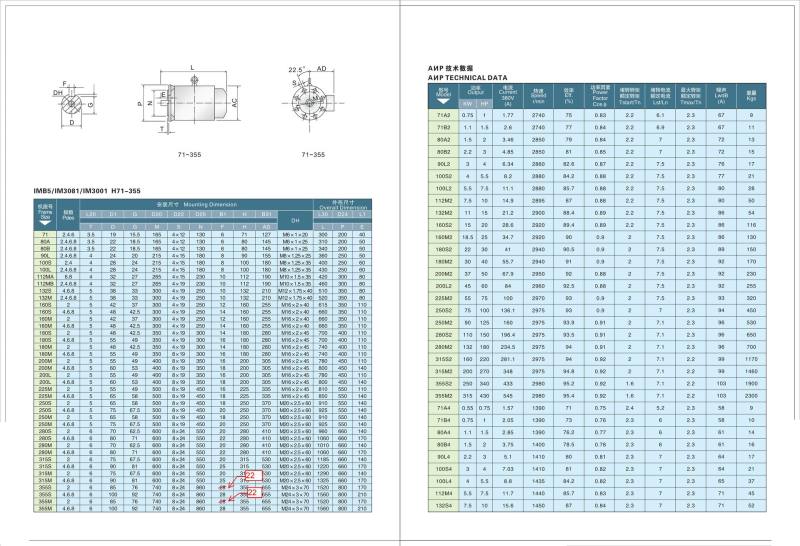

TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:0.75KW~315KW
Pole:2/4/6/8
Terminal Box:Top/Side Mounted
Protection Class:IP54/IP55
Insulation Class:F
Bearing:SKF/NSK/Chinese
Frequency:50/60HZ
Mounting Construction:IM1081, IM2081, IMB3081, IMB3681, IM2181, IM3011
Efficiency Standard:IEC60034-30 IE2


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:220/380V, 380/660V, 400V, 415V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer' s option)
Cooling method:IC 411
Duty:S1




 Company Overview :



 Certifications:



 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us :


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ :


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.

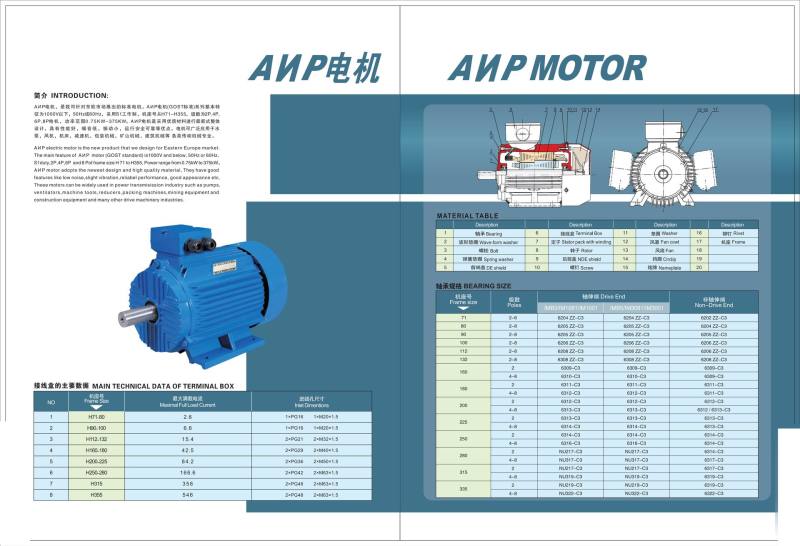

AИP GOST STANDARD SERIES THREE PHASE ELECTRIC MOTOR
INTRODUCTION:
AИP electric motor is the new product that we design for Eastern Europe market. The main feature of AИP motor (GOST standard) is 1000V and below 50Hz or 60Hz, S1 duty, 2P, 4P ,8P and 8 Pof frame size H71 to H355. Power range from 0.75KW to 375KW. ANP motor adopts the newest design and high quality material. They have good features like low noise, slight vibration, reliable performance, good apperance etc, These motor can be widely used in power transmisission industry such as pumps, ventilators, machine tools, reducers, packing machines mining equipment and construction equipment and many other drive machinery industries.
