Location:ALTERNATORS


INTRODUCTION :


STC Series generators are used in town, countryside, work sites, villages and pastures as electric STC series generators are used as lighting in countryside, town, work sites, mountain and pasturing areas ,the three phase A.C. power supply, as well as to be reserved emergency power source.

The generator is adopted drip-proof with rotary field type, protection class IP23, insulation class B or F and harmonic excitation system. It is safe and reliable, easy operation and maintenance.

The generator is three-phase, four wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz, power factor 0.8(lag). We can provide 60Hz and the other voltage's value according to the customer's request.

The generator can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changes 3% or so and load varies in the range of 0~100% and 0.8~1.0, the generators offer constant voltage. When sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.

The generators are made as per standard JB/T11817-2014, as well as in conformity to IEC34-1.


TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:3KW~50KW
Terminal Box:Top Mounted
Protection Class:IP21
Insulation Class:B
Bearing:Chinese
Frequency:50/60HZ
Pulley Available:4'', 5'',  6'', 7'', 8'', 11'' or any other size as per   requirement
Efficiency Standard:IEC34-1


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:230V 400V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer'   s option)
Cooling method:IC 411
Duty:S1

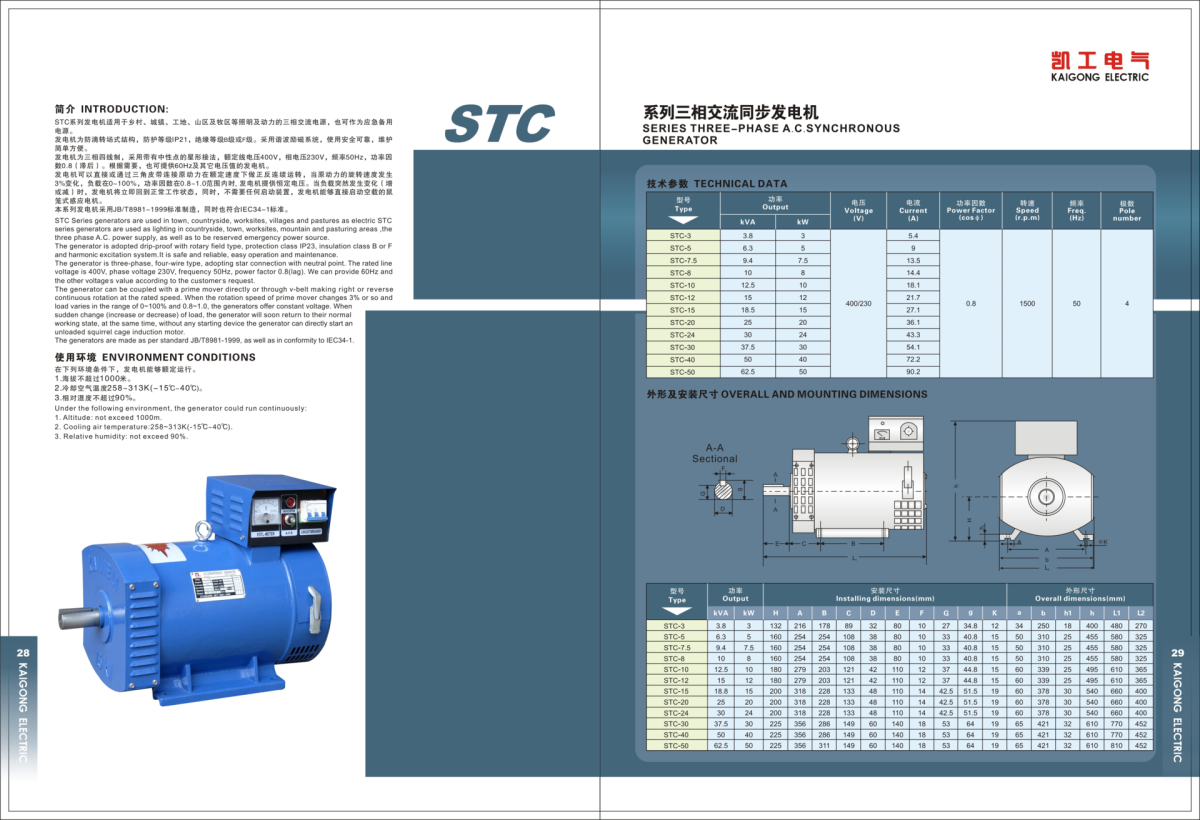

STC SERIES THREE-PHASE A.C.SYNCHRONOUS GENERATOR


 Company Overview:


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200


 Certifications:


20200817162347346.jpg@!w1200

 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


STC SERIES THREE-PHASE A.C.SYNCHRONOUS GENERATOR
INTRODUCTION:
STC Series generators are used in town, countryside, work sites, villages and pastures as electric STC series generators are used as lighting in countryside, town, work sites, mountain and pasturing areas ,the three phase A.C. power supply, as well as to be reserved emergency power source.
