 INTRODUCTION :


YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. These series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.

YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque, while 60Hz is 2.75 times more. Capacitors start and run type for motors 4HP and above. It has following features: high starting torque, smooth running,

low temperature rise, low noise and greater overload performance. YCL series heavy-duty capacitor start and run, single phase induction motors are suitable for driving small-size turning machine, especially suitable for household and workshop where only single-phase power be supplied. This series of motors are designed with advanced technique and made of high quality materials. It also has following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC. YCL series motors are similar to YC series in appearance. Comparing with the same output ofYC series motors, YCL series temperature rise is reduced 8.74k on average, efficiency is increased 4.21%, power factor is increased 0.16.

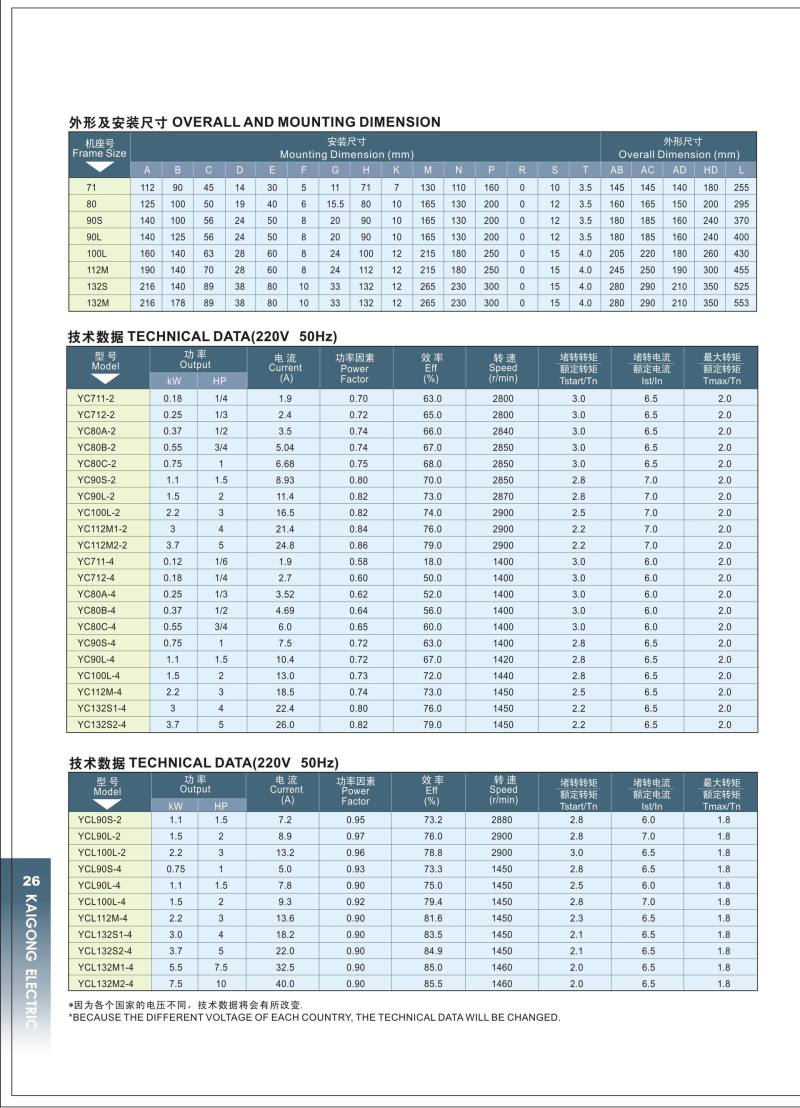

TECHNICAL   DATA
Housing metrial:  Cast Iron
Output range:0.18KW~7.5KW
Pole:2.4.
Terminal Box:Top/Side Mounted
Protection Class:IP44
Insulation Class:B
Bearing:C&U, SKF, NSK, NTN
Frequency:50/60HZ
Efficiency Standard:IEC60034-30 IE1


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:110V, 115V, 120V, 220V, 230V, 240V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer' s option)
Cooling method:IC 411
Duty:S1

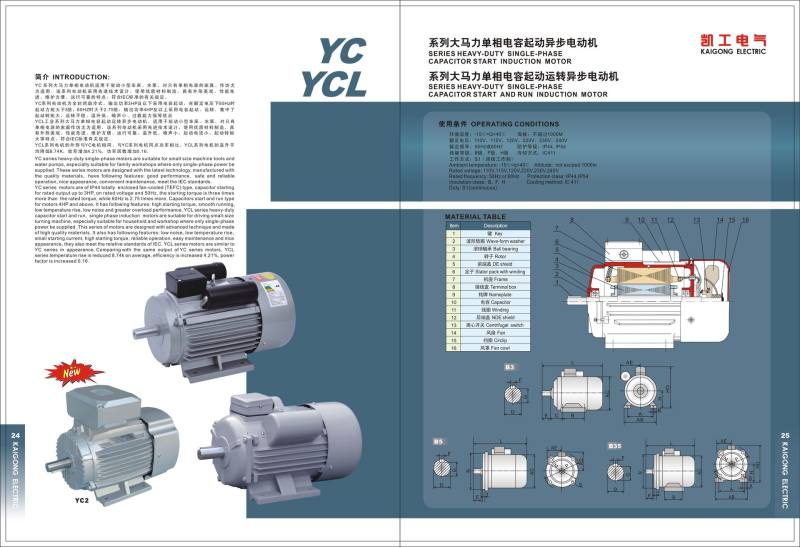

YC YCL SERIES NEW TYPE SINGLE PHASE MOTOR

YC YCL SERIES NEW TYPE SINGLE PHASE MOTOR


Company Overview :


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200

 Certifications :

20200817162347346.jpg@!w1200

 Process :

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us :


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


  RAQ :


Delivery time :    Within 35 days working day since we receive the deposit.
MOQ :           1 set is acceptable.
Payment term :  30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging :      Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage : 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard : ISO9001:2008, CE, CCC, TUV, SGS.


YC YCL SERIES NEW TYPE SINGLE PHASE MOTOR
INTRODUCTION:
YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. These series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
