We KAIJIELI Group firmly believe that "Sincerity Creates Value". We always adhere to the policy of high standard, high quality and high efficiency and devote ourselves to the research and sales all over the world.

Location:ELECTRIC MOTOR


INTRODUCTION :


YB3 series explosion proof three-phase induction electric motor is applicable 10 be used a place containing explosive mixtures of iammable gas or vapour and air. Provide petrol and chemical industry with new generation driving equipment which is safer, more advanced, more reliable and more efficient.

Our YB3 series explosion poof three phase induction electric motor have obtained industrial Production License, Explosion-proof Certificate etc.

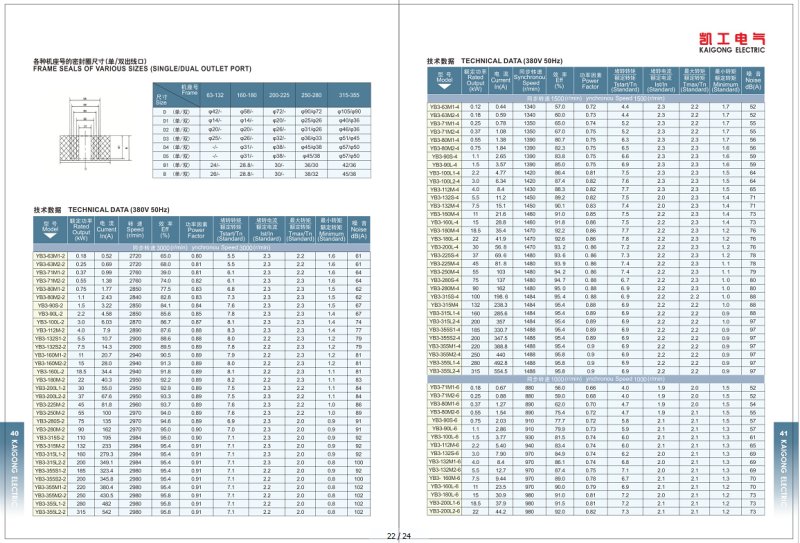

TECHNICAL DATA
Housing metrial:  Cast Iron
Rated Power:0.12KW-315KW
Pole:2/4/6/8
Terminal Box:Top/Side Mounted
Protection Class:IP44/IP54/IP55
Insulation Class:F
Bearing:SKF/NSK/Chinese
Frequency:50/60HZ

Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:380V(at buyer's option)
Rated frequency:50Hz 60Hz (at buyer's option)
Cooling method:IC 411
Duty:S1

YB3 SERIES EXPLOSION-PROOF THREE-PHASES ASYNCHRONOUS MOTOR

YB3 SERIES EXPLOSION-PROOF THREE-PHASES ASYNCHRONOUS MOTOR

YB3 SERIES EXPLOSION-PROOF THREE-PHASES ASYNCHRONOUS MOTOR

YB3 SERIES EXPLOSION-PROOF THREE-PHASES ASYNCHRONOUS MOTOR



 Company Overview:


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200


 Certifications:


20200817162347346.jpg@!w1200

 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


YB3 SERIES EXPLOSION-PROOF THREE-PHASES ASYNCHRONOUS MOTOR
INTRODUCTION:
YB3 series explosion proof three-phase induction electric motor is applicable 10 be used a place containing explosive mixtures of iammable gas or vapour and air. Provide petrol and chemical industry with new generation driving equipment which is safer, more advanced, more reliable and more efficient.
Our YB3 series explosion poof three phase induction electric motor have obtained industrial Production License, Explosion-proof Certificate etc.
