Location:ELECTRIC MOTOR


 INTRODUCTION:



Adopting the national uniform design, Y2 series three-phase induction motors are in conformity with IEC 34-1 and JB/T8680 standards, also up to the international advanced level of the 90's. As the substitute of Y series induction motors, it possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc. CDF, SDF series three phase motors are newly designed by our company for the European and American markets on the basis of Y2 series. Its rated power and mounting sizes are que same as Y2 series. The efficiency of CDF and SDF can meets standards of EFF2 and EFF1. The motors are adopted in class F (Temperature rise B) insulation and IP55 protection. Motors can be equipped with PTC, as well as re-greasing system for frame size 160 and above, bearings of SKF, NSK or NTN at optional.

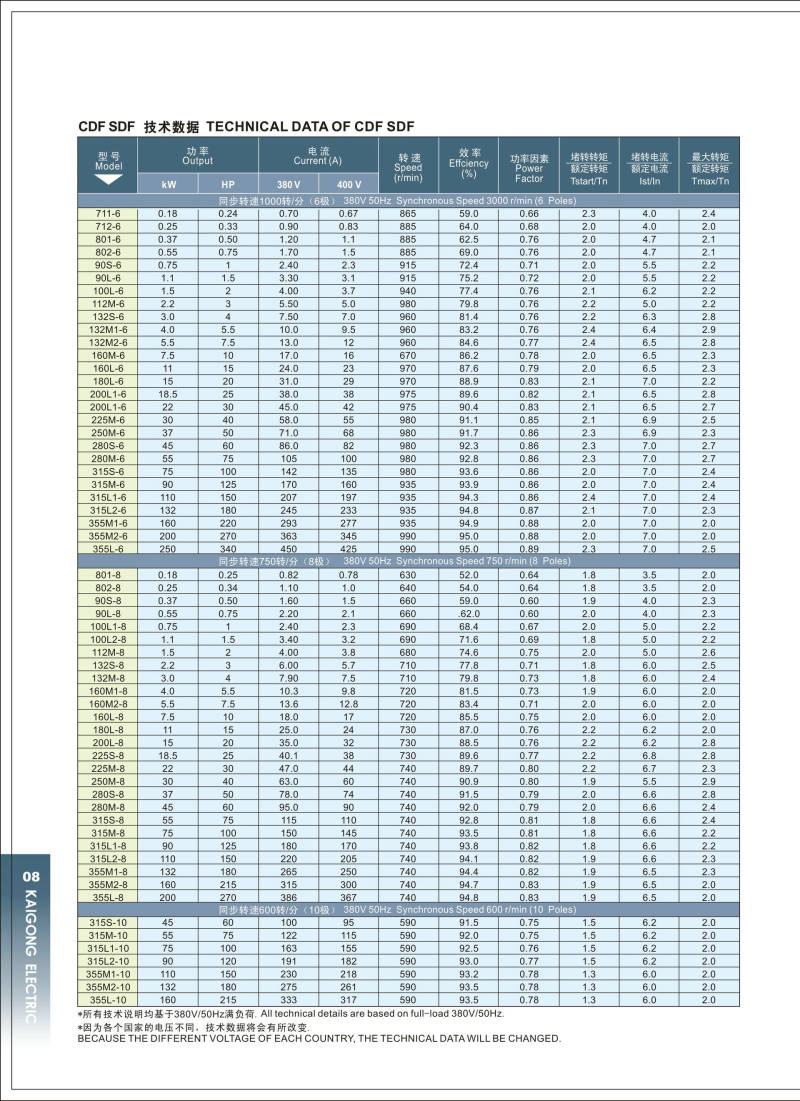

TECHNICAL   DATA
Housing metrial:  Cast Iron/aluminum
Output range:0.55KW~315KW
Pole:2002/4/6
Terminal Box:Top/Side Mounted
Protection Class:IP55
Insulation Class:F/H
Bearing:SKF/NSK/Chinese
Frequency:50/60HZ
Efficiency Standard:IEC60034-30 IE2


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:380V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer' s option)
Cooling method:IC 411
Duty:S1


Technical Performance :


1)Adjusting rate of stable voltage ±0.5%

2)Adjusting rate of instant voltage: ≥-15% ~ ≤+20%

3)Adjusting range of voltage: ≥±25%

4)Standard H insulation class.

All wound components are impregnated with materials and processes disigned specifically to provide the high build required for static windings and the high mechanical strength required for rotating components.

5)Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

6)Protection class: IP21-23(NEMA1) enclose is standard for all industrial alternators;


  Company Overview:



 Certifications:


 Process:

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.

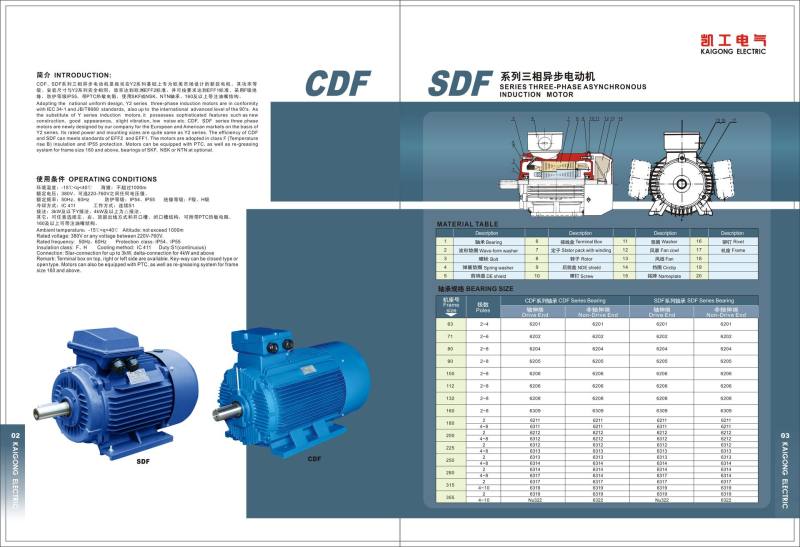

CDF SDF SERIES THREE-PHASE MOTOR
INTRODUCTION:
Adopting the national uniform design, Y2 series three-phase induction motors are in conformity with IEC 34-1 and JB/T8680 standards, also up to the international advanced level of the 90's. As the substitute of Y series induction motors, it possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc. CDF, SDF series three phase motors are newly designed by our company for the European and American markets on the basis of Y2 series. Its rated power and mounting sizes are qu代e same as Y2 series. The efficiency of CDF and SDF can meets standards of EFF2 and EFF1. The motors are adopted in class F (Temperature rise B) insulation and IP55 protection. Motors can be equipped with PTC, as well as re-greasing system for frame size 160 and above, bearings of SKF, NSK or NTN at optional.
