Location:ELECTRIC MOTOR


 INTRODUCTION :


The KE3 series three phase asynchronous motors are totally enclosed fan cooled(TEFC) with IP55 environmental protection, and applicable for general purpose use. These motors are designed and manufactured in accordance with EU IE3 standards.

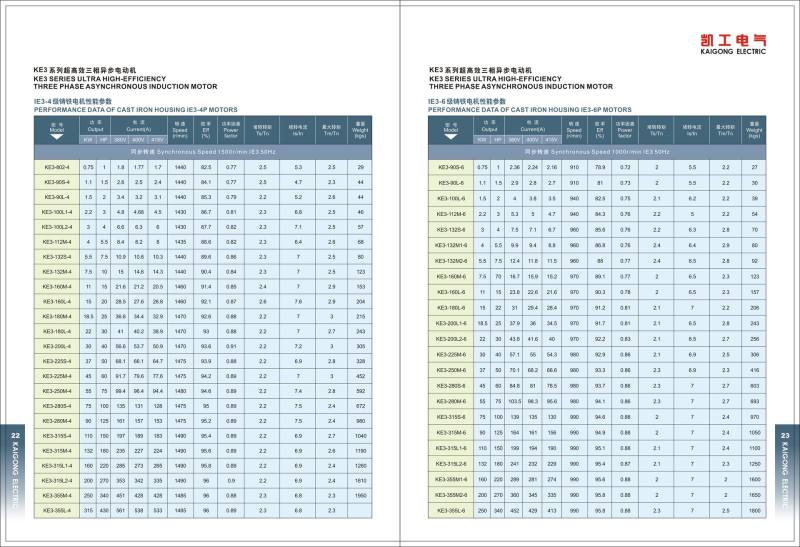

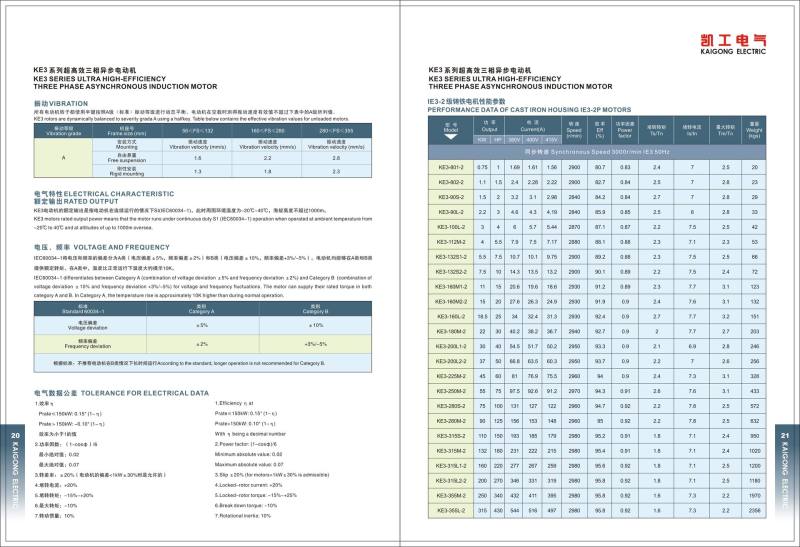

TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:0.55KW~315KW
Pole:2002/4/6
Terminal Box:Top/Side Mounted
Protection Class:IP55
Insulation Class:F
Bearing:SKF/NSK/Chinese
Frequency:50/60HZ
Efficiency Standard:IEC60034-30 IE2


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:380V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer'   s option)
Cooling method:IC 411
Duty:S1


FEATURES OF KE3 SERIES :


1)Available in 2,4,6 pole variants with efficiency grade 1 according to GB60034-30 and efficiency class IE3 according to IEC60034-30

2)Optimized compact style construction

3)Standard mounting construction according to IEC60034-7; IMB3, IMB5, IMB35, IMB14, IMB34, IMV1, IMV3 and etc

4)AII motors are designed to IP55  degree of protection(IEC60034-5)

5)Winding protections with PTC, PT100 and KTY84-130 as option

6)Insulation system is designed for temperature class 155°C(F). At rated output with line-fed operation, the motors can be used in temperature class 130°C(B)




Company Overview :



 Certifications :





Process :


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us :


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


RAQ :


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.

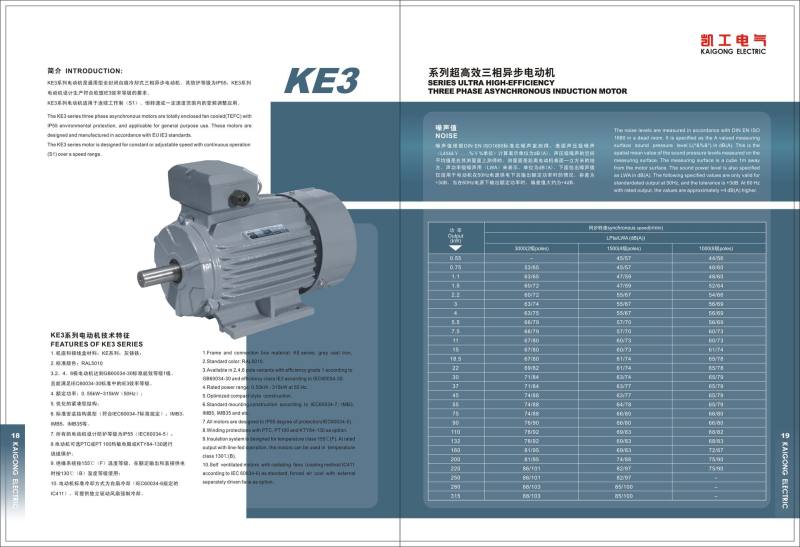

KE3 SERIES ULTRA HIGH EFFICIENCY MOTOR
​ INTRODUCTION:
The KE3 series three phase asynchronous motors are totally enclosed fan cooled(TEFC) with IP55 environmental protection, and applicable for general purpose use. These motors are designed and manufactured in accordance with EU IE3 standards.
