Location:ALTERNATORS


 INTRODUCTION :


ST series generators are designed to serve mainly as the power of household appliances and the lighting in towns, villages, houses or minitype ships.

The structure of generator is drip-proof type, protection class IP21, salient-pole rotating field self excitation and constant voltage type. The generator interior is made of high quality magnetic and electrical materials. The insulation for stator and rotor class B or F. The generators are made as per standard JB/T11817-2104 also in conformity to IEC34-1 standard.

The generators are elegant in appearance, tight in structure and easy maintenance.

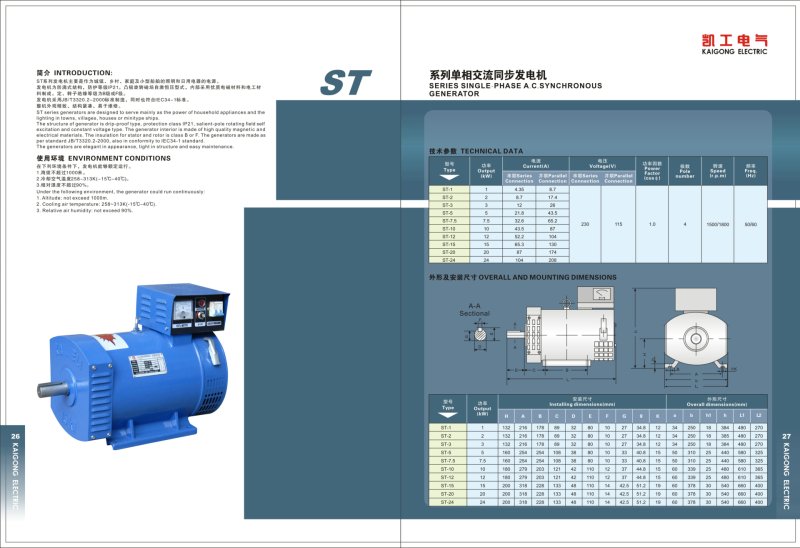

TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:3KW~24KW
Terminal Box:Top Mounted
Protection Class:IP21
Insulation Class:B
Bearing:Chinese
Frequency:50/60HZ
Pulley Available:4'', 5'',  6'', 7'', 8'', 11'' or any other size as per   requirement
Efficiency Standard:IEC34-1


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:220V 230V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer'   s option)
Cooling method:IC 411
Duty:S1



 Company Overview :



 Certifications :



 Process :


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us :


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.

 RAQ :


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


ST SERIES SINGLE-PHASE A.C.SYNCHRONOUS GENERATOR
INTRODUCTION:
ST series generators are designed to serve mainly as the power of household appliances and the lighting in towns, villages, houses or minitype ships.
