We KAIJIELI Group firmly believe that "Sincerity Creates Value". We always adhere to the policy of high standard, high quality and high efficiency and devote ourselves to the research and sales all over the world.

Location:ALTERNATORS


INTRODUCTION :


FHWS Series A. C&D. C electrical machine is our new product that can provide A.C generating and D.C welding function simultaneously. Either gasoline engine diesel can act as a movable/fixed power, and to realize its double-function a speed of 3000 circles per minute is also needed.

As a D.C welding machine, it can weld all kinds of alloy parts with the welding rob of φ2.0-φ6.0 Thanks to the high quality permanent magnetic material(Nd,Fe,and Boron) the non-carbon brushes are reached, and welding properties arestrengthened, so the machine's reliability and ease of use improve a lot. Also the machine can generate an A.C voltage of 220V and frequency 50HZ, which can be used as a illumination. electric fan, and small power house hold appliances, as well as the work in the field where the A.C is needed.


TECHNICAL DATA
Housing metrial:  Cast Iron
Output range:1.5KW-1.8KW
Terminal Box:Top Mounted
Protection Class:IP21
Insulation Class:B
Bearing:Chinese
Frequency:50/60HZ
Pulley Available:4'', 5'',  6'', 7'', 8'', 11'' or any other size as per   requirement
Efficiency Standard:IEC34-1


Operating Conditions
Ambient temperature:-15º C~40º C
Altitude:not exceed 1000m
Rated voltage:230V 400V(at buyer' s option)
Rated frequency:50HZ 60HZ(at buyer'   s option)
Cooling method:IC 411
Duty:S1

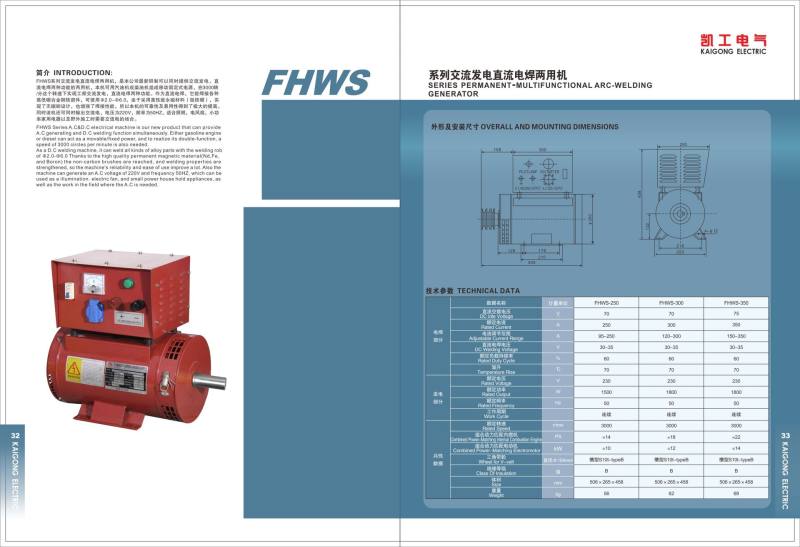

FHWS SERIES PERMANENT-MAGNET AC DC-WELDING GENERATOR

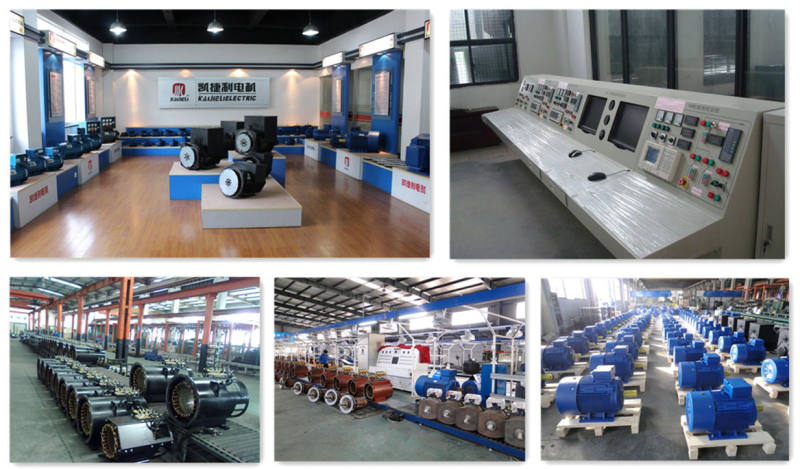

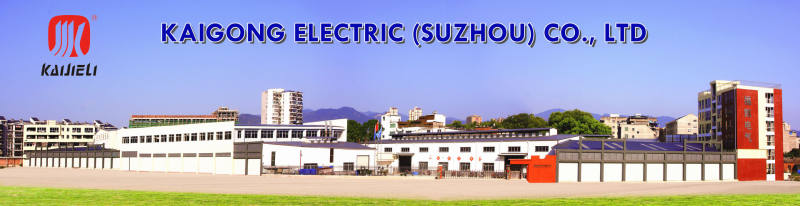

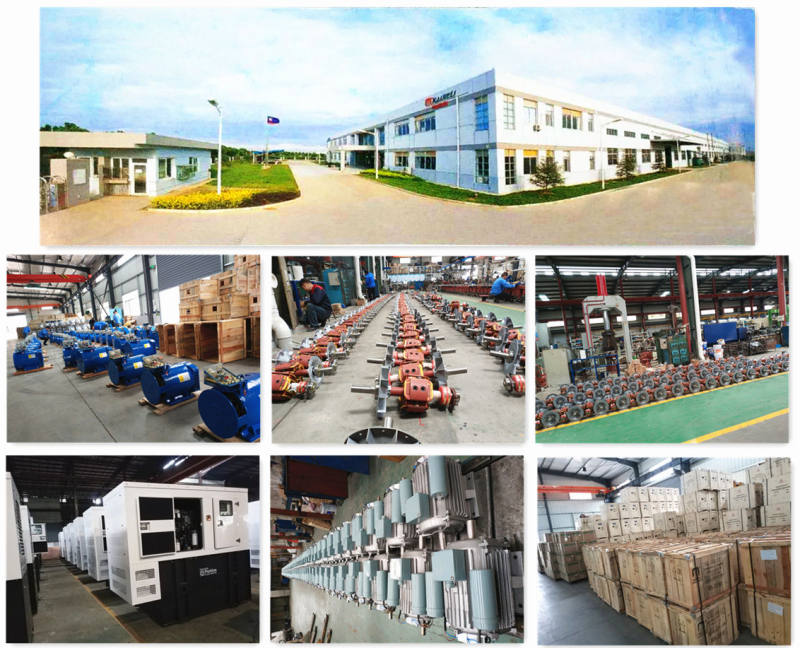

 Company Overview:


20200817162349688.jpg@!w1200

20200817162348403.jpg@!w1200

20200817162352792.jpg@!w1200


 Certifications:


20200817162347346.jpg@!w1200

 Process:


1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.


 About Us:


KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.


 RAQ:


Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.


FHWS SERIES PERMANENT-MAGNET AC DC-WELDING GENERATOR
INTRODUCTION:
FHWS Series A. C&D. C electrical machine is our new product that can provide A.C generating and D.C welding function simultaneously. Either gasoline engine diesel can act as a movable/fixed power, and to realize its double-function a speed of 3000 circles per minute is also needed.
As a D.C welding machine, it can weld all kinds of alloy parts with the welding rob of φ2.0-φ6.0 Thanks to the high quality permanent magnetic material(Nd,Fe,and Boron) the non-carbon brushes are reached, and welding properties arestrengthened, so the machine's reliability and ease of use improve a lot. Also the machine can generate an A.C voltage of 220V and frequency 50HZ, which can be used as a illumination. electric fan, and small power house hold appliances, as well as the work in the field where the A.C is needed.
